                                                                  PP  Microporous Pleated Filter Cartridge

PP pleated filter cartridge is made of pleated polypropylene membrane, polypropylene non-woven fabrics and polypropylene cage. During the production, it is purity, free of surfactants, resins, binders and adhesives. Polypropylene Pleated filter cartridge can be used for the liquid and gas prefiltration and clarification.

Main Characteristics:

1. 100% high quality polypropylene material

2. Wide chemical compatibility

3. High flow rate

4. Low differential pressure

5. High dirt holding capacity

6. High nominal filtration precision

7. Long using life

8. Economical choice for the prefiltration and guard filtration before critical filtration

9. Board range of micron ratings

10. Suitable for various filtration

11. Meet the current FDA after cleaned and flushed with Pyrogen-free water


Micron Rating(µm):

0.10   0.20   0.45   1.0   3.0   5.0   10.0   20.0   40.0   50.0  100.0


Typical Applications:

1. Pharmaceuticals, APIs, Biologics; Solvent; Compressed air filtration

2. Plating solutions, Ink

3. Fine Chemicals

4. Food & Beverages, Wine, Beer, Mineral Water

5. Semi-Conductor, LCD Display, Discs, R.O. prefiltration

6. Clarification of waste water treatment


Specifications:

Filter medium PP
Support Layer Polypropylene
Inner Core Polypropylene
Outer Core Polypropylene
Outer Diameter 68mm
Inner Diameter 33mm
Effective Filtration Area 0.60m2
Normal Operating Temperature 55ºC
Max. Operating Temperature 80ºC(P0.10Mpa)
Max. Differential Pressure Normal Flow direction:4.2 bar at 25ºC, Reverse Flow direction: 2.1 bar at 25ºC
PH Value compatibility 1-13
Sterilizing temperature Steam Sterilization for 30 minutes at 121±2ºC
Endotoxin <0.25 EU/ml
Extractable 0.03g/10"
Remark: special requirement of diameter and end caps can be customized
Complete test  (minimum bubble point)(25ºC;95% isopropanol):
0.10um 0.024Mpa
0.20um 0.016Mpa
0.45um 0.012Mpa

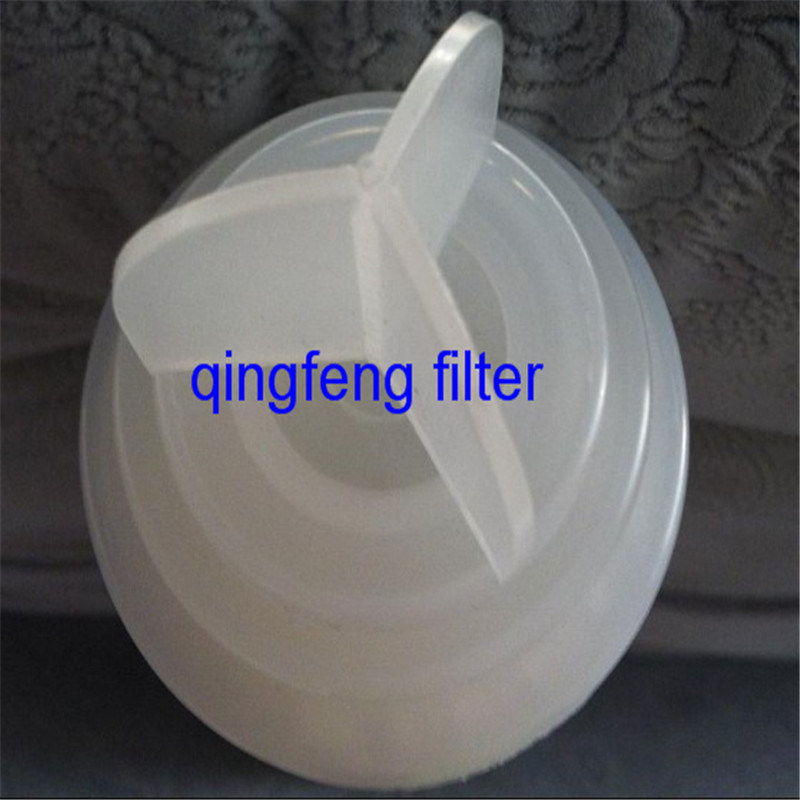

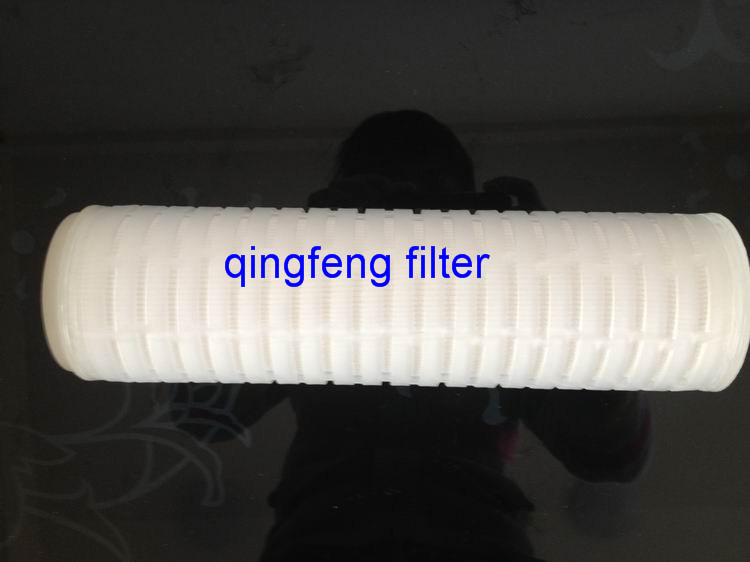

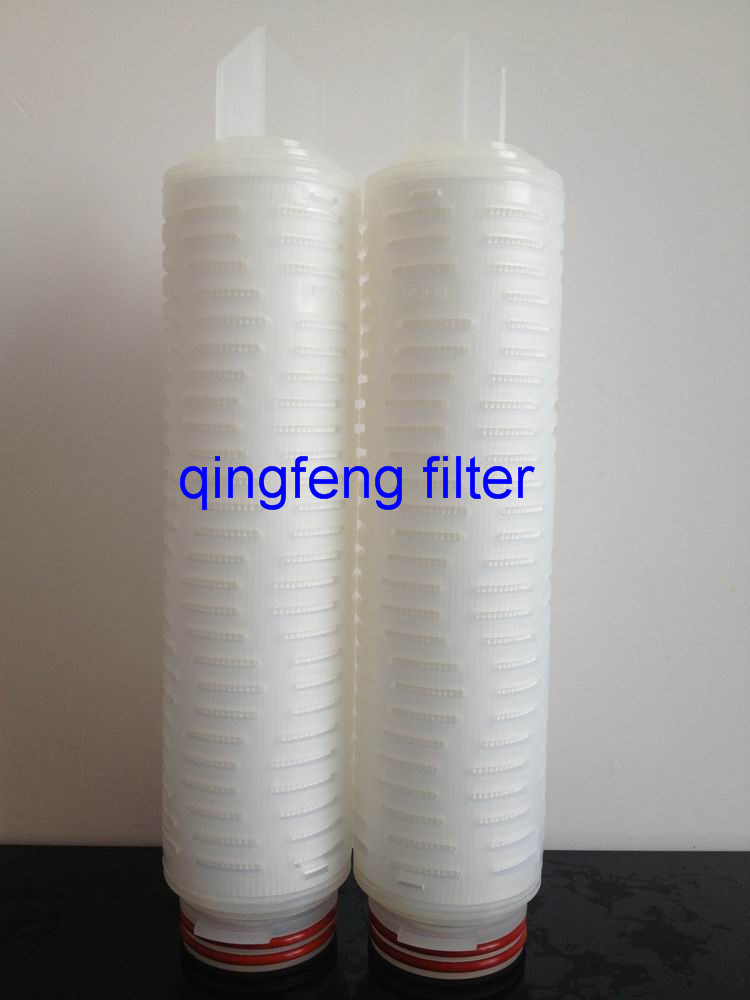

Polypropylene Pleated Filter Cartridge
Pleated Polypropylene Membrane
Prefiltration Filter Element

Certificates:

Prefiltration Filter ElementPolypropylene Pleated Filter Cartridge



Pleated Polypropylene Membrane
Polypropylene Pleated Filter Cartridge
Prefiltration Filter Element

ABOUT US:

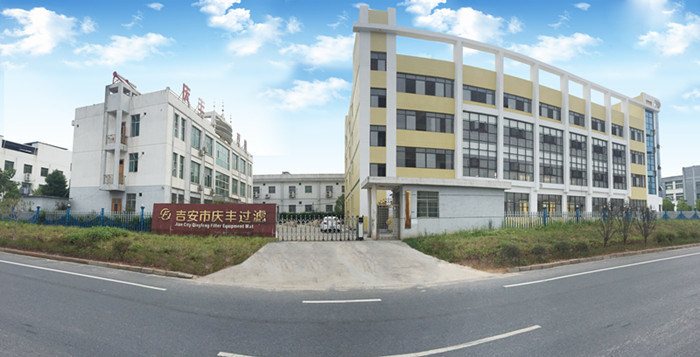

    QingFeng Filter Equipment Co., Ltd ,located in new industrial park, QingYuan area, Ji'an  Jiangxi Province, is a manufacturer in inustrial filtration and separation region , producing and marketing microfiltration products for pharmaceutical, food and beverage, chemical and electronic industries and other related liquid and gas filtration industries, such as filter membrane, filter cartridges, filter housing.

    Our factory has a full set of filter technology and filter production equipment (include quality monitoring equipment) which is imported from Japan. At the meantime, Our factory adhering to the technology advantage of CN-CA reinforced membrane( the important new product of 85 national torch plan) And Nylon reinforced membrane(the first Nylon creator). And our factory also the domestic leading technical level in producing reinforced PVDF membrane.  The products and services we offer will provide world class quality.
