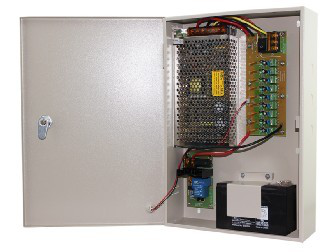

12vdc Power Supply with Battery Backup, 9 Channel power supply box for surveillance camera systems,CCTV Power Supply Unit with Backup 12V10A DC,Each channel is individually fused at 1.1 amp DC each. 10 Amp DC total output. Cctv Power Supply Unit With battery 12V7AH. Each channel with fuse or PTC for protection, spare fuses included.UPS Power Supply with Stable performance, high efficiency, low power consumption.100% full loading burn-in test.Unit maintains camera synchronization.
Features:
1. Protection Measure
>>General
Protection: each output has individual PTC fuse and LED indicator, when
problem occurs,only affect the individual output, other outputs still
working.
>>Circuit
Short Protection: when short condition occurs, individual PTC fuse will
open the circuit,when condition removed, PTC fuse will automatically
back to close.
>>High Voltage Protection: when high voltage occurs,the surge protection will be hit through to protect the connected device.
>>Over
Current protection: when over current occurs, the power supply will
automatically switch to self-protection status, when condition removed,
then switch back to normal.
2. UPS Function
>>when normal condition,PS will provide volatege and charge for battery automatically,charging voltage will be 13.0-13.6V DC.
>>when
power cutting condition,battery will provide voltage
automatically,Uninterruptedly Power range will be 40nS.when battery
voltage is less 10.5V,
no provide power for the load, in order to protect battery life.
Connectiong Instructions:
|
STD Series CCTV Power Supply Unit with Backup(UPS) Specifications
|
|
MODEL
|
STD-40T-120-9-B
|
STD-40T-120-9-UPS
|
STD-40T-250-18-UPS
|
STD-40T-350-18-UPS
|
|
OUTPUT
|
Output voltage
|
12V
|
12V
|
12V
|
12V
|
|
Channel of output
|
9CH
|
9CH
|
18CH
|
18CH
|
|
Output current
|
1.1A*9
|
1.1A*9
|
1.15A*18
|
1.5A*18
|
|
Output current range
|
0~1.25A*4
|
0~1.1A*9
|
0~1.15A*18
|
0~1.5A*18
|
|
DC power
|
120W
|
120W
|
250W
|
350W
|
|
Voltage adj.range
|
±1%
|
±1%
|
±1%
|
±1%
|
|
Ripple and noise
|
120mVp-p
|
120mVp-p
|
120mVp-p
|
120mVp-p
|
|
Line Regulation
|
±0.5%
|
±0.5%
|
±0.5%
|
±0.5%
|
|
Load stability
|
±0.5%
|
±0.5%
|
±0.5%
|
±0.5%
|
|
Efficiency
|
Efficiency
|
85%
|
85%
|
85%
|
85%
|
|
INPUT
|
AC voltage range
|
AC100-240V AC Switch 50/60Hz:
|
|
Leakage Current
|
<1mA/240VAC
|
|
Protection
|
Overload protection
|
105%-200%
|
|
T.C.
|
±0.03%(0-50℃)
|
|
Start.Rise.Hold time
|
200ms,100ms,20ms
|
|
Mechanical Shock
|
10-500Hz,2G 10min/1 Period,Time 60min
|
|
Insulation Strength
|
I&O:3KVAC,I&C:1.5KVAC I&C:0.5KVAC
|
|
Insolation resistance
|
I&O,I&C: O&C,500V DC/100M
|
|
Environment
|
Working Temperature
|
-10℃--40℃, 20%-90% RH
|
|
Store Temperature
|
-20℃--85℃, 10%-95% RH
|
|
Certification
|
Safety Standard
|
UL1012 REQUIREMENT(NOT APPLY FOR THE MARK)CLASS A
|
|
EMC Standard
|
FCC PART15JCONDUCTION CLASS A
|
Widely apply for CCTV Camera, PTZ, IR Illuminators, Video Process Equipment,etc.Access Control Reader,Lock,Panel,etc.
