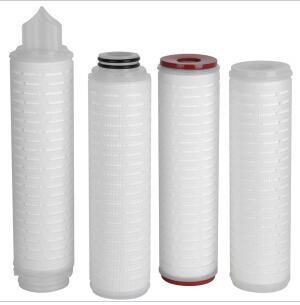

                                                        PP Filter Cartridge

Introduction:

The filtration media of PP micropore filter cartridge is superfine PP fibre membrane. It is a fixed and depth filter cartridge with a wide range of pore size from 0.1um to 60um, the materials comply with FDA related requirements. It is the first choice of pre-filtration due to its unique low differential pressure, high flow rate and long service life feature. The structure of PP has stable performance and wide chemical compatibility.

Specification:

Filter medium: PP fiber membrane
Support layer: PP
Filter cage: PP
Pore size:0.1, 0.22, 0.45, 1.0, 3.0, 5.0, 10, 20 (um)
Length: , 5", 10", 20". 30", 40"
Sealing material: Silastic, NBR, EPDM, Viton
Airtight method: thermal bonding technique
Effective filtration area: 0.4~0.7square meter/10"
Diameter:68mm
Max. operating temperature: 60ºC,( 124071, 57199965,△P≤0.01Mpa)
Max. positive pressure: 0.42Mpa(23ºC)
Max. back pressure: 0.28Mpa(23ºC)
PH value: 1--13
Sterilizing temperature: 121ºC  30min
Others: special requirement of diameter and end caps can be customized

Typical Applications:
Medical industry; Chemical industry; Food industry; Electronic industry and others

Material of  construction
Membrane Polypropylene
Support  & Drainage Polypropylene
Core & Cage Polypropylene
End  Caps Polypropylene
O-rings/Gasket Silicone/EPDM/Viton/TEV
Sealing  Technology Thermal  Bonding, No Adhesives
Dimensions
Outer  Diameter 68mm (2.67 in)
Length 5", 10", 20", 30", 40"
Filtration Area
≥ 4.0 ft2 /10" (0.41 m2 /250mm)
Removal Ratings, μm
0.1, 0.22, 0.45, 1.0, 3.0, 5.0, 10, 20
Maximum Operating  Temperature
A:  PP<60ºC(140ºF)
B:  PP with stainless steel lined end cap<85ºC/185ºF
C:  PP with stainless steel lining<95ºC/203ºF
Maximum Forward  Differential Pressure
4.2 bar @ 23 ºC/60.9 psid @ 73.4ºF
[This information will show after login with premium membership] ºC/21.7 psid @ 185ºF
0.6  bar @ 95 ºC/8.7psid @ 203ºF

10'' 20'' 30''pp Pleated Filter Cartridge for Water Pre-Filtration10'' 20'' 30''pp Pleated Filter Cartridge for Water Pre-Filtration
10'' 20'' 30''pp Pleated Filter Cartridge for Water Pre-Filtration
10'' 20'' 30''pp Pleated Filter Cartridge for Water Pre-Filtration
Company Profile:

QingFeng Filter Equipment Co., Ltd ,located in new industrial park, QingYuan area, Ji'an Jiangxi Province, is a manufacturer in inustrial filtration and separation region , producing and marketing microfiltration products for pharmaceutical, food and beverage, chemical and electronic industries and other related liquid and gas filtration industries, such as filter membrane, filter cartridges, filter housing.
Our factory has a full set of filter technology and filter production equipment (include quality monitoring equipment) which is imported from Japan. At the meantime, Our factory adhering to the technology advantage of CN-CA reinforced membrane( the important new product of 85 national torch plan) And Nylon reinforced membrane(the first Nylon creator).And our factory also the domestic leading technical level in producing reinforced PVDF membrane. The products and services we offer will provide world class quality.
